| Mã hàng | DAX-21 |
| Danh mục | NHÓM DỤNG CỤ THỦY LỰC LOẠI XOAY (TORQUE WRENCH). |
| Thương hiệu | ITH BRAND |
| Xuất xứ | Made in Germany |
| Chia sẻ | |
| Liên hệ nhanh |
028-7300 7797
sales@nhatduysgn.com |

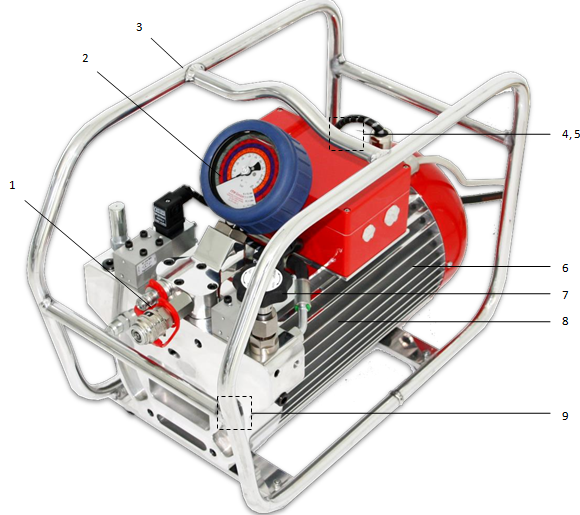

1. Dual-Hose hydraulic connection High-flow technology nipples and couplings offer high output
2. High-pressure gauge with protective rubber cover and multiple colored pressure scales (0 – 1000 bar)
3. Strong aluminium frame weight optimized, with lifting point
4. Voltage indicator light (neutral conductor; [backside])
5. Cycle Counter display of bolted cycles offers easy information for tool management (backside)
6. Ribbed tank&fan efficient cooling of the oil bath motor
7. Pressure adjustingv alve to set the required torque
8. Oil bath motor 1.1 kW power inside
9. Oil level sight glass(behind the frame)
Technical data DAX-21:
|
ITH order no. |
50.01021-Motor-ID |
|||
|
Type |
DAX 21 |
|||
|
Max.hydr.operating pressure [ bar] |
850 bar |
|||
|
D imensio ns LxB xH [mm] |
535 x 298 x 450 |
|||
|
Weight [ kg] |
35 (without oil) |
|||
|
Electrics |
Voltage |
Phases |
Frequency |
Motor-ID |
|
110 V |
1 |
50+60 Hz |
-11175 |
|
|
190 - 230 V |
1 |
50+60 Hz |
-23175 |
|
|
380 - 420 V |
3 |
50+60 Hz |
-40375 |
|

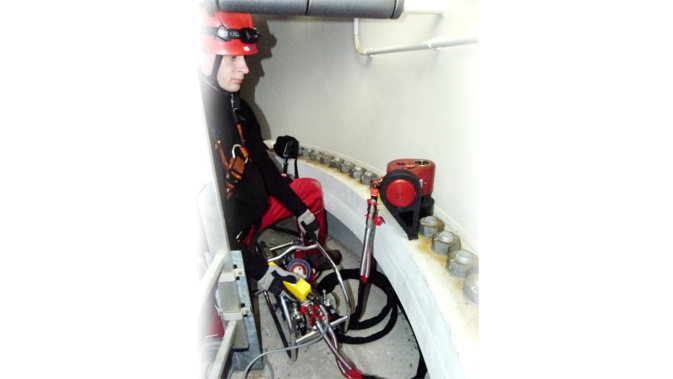

Application:
