| Mã hàng | DRS- |
| Danh mục | NHÓM DỤNG CỤ THỦY LỰC LOẠI XOAY (TORQUE WRENCH). |
| Thương hiệu | ITH BRAND |
| Chia sẻ | |
| Liên hệ nhanh |
028-7300 7797
sales@nhatduysgn.com |

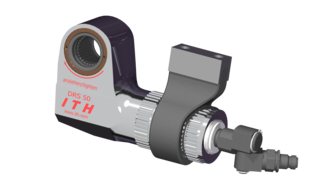

1. Closed Steel Housing
2. Splined output for square insert types DRS-VE, power wrench inserts type DMS-KSE and hex- wrench inserts DMS-SE .
3. Light-weight reaction arm with extra-strong reaction plate, asymmetrical shape adjustable inboth directions offers optimal reaction points.

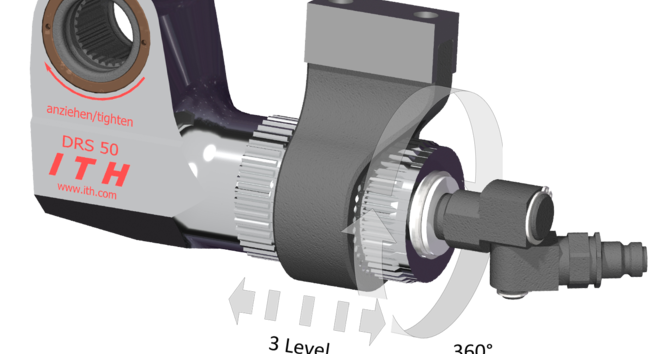

4. Splined housing in addition to 360° rotation the reaction arm can be adjusted up and down along threepositions.

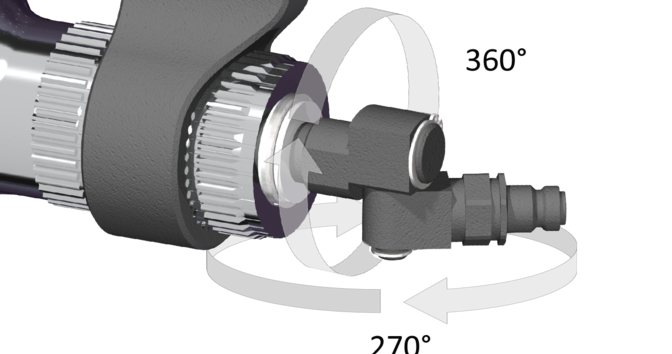

5. TWIN-swivel-connection with two swivel points for maximum flexibility when positioning the tool and hose.
6. High-pressure quick-connect coupler
7. Touch-control lock to position and lock the reaction arm with one touch (backside).
Technical Data:
|
ITH type |
Max. Torque |
L1 |
L2 |
B |
R |
H |
Weight |
ITH order no. |
|||||||
|
[Nm] |
[ft·lb] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[kg] |
[lb] |
|
|
|
DRS 6 |
600 |
443 |
95 |
3.74 |
79 |
3.11 |
30 |
1.18 |
16.5 |
0.65 |
41 |
1.61 |
1.3 |
2.87 |
51.10000 |
|
DRS 12 |
1,250 |
922 |
124 |
4.88 |
103 |
4.06 |
38 |
1.50 |
21.5 |
0.85 |
58 |
2.28 |
1.7 |
3.75 |
51.10001 |
|
DRS 22 |
2,200 |
1,623 |
161 |
6.34 |
136 |
5.35 |
45 |
1.77 |
25 |
0.98 |
68 |
2.68 |
2.3 |
5.07 |
51.10004 |
|
DRS 50 |
5,000 |
3,688 |
180 |
7.09 |
150 |
5.91 |
54 |
2.13 |
30 |
1.18 |
90 |
3.54 |
4.1 |
9.04 |
51.10006 |
|
DRS 83 |
8,300 |
6,122 |
219 |
8.62 |
179 |
7.05 |
60 |
2.36 |
40 |
1.57 |
118 |
4.65 |
6.8 |
14.99 |
51.10008 |
|
DRS 140 |
14,000 |
10,326 |
224 |
8.82 |
179 |
7.05 |
70 |
2.76 |
45 |
1.77 |
127 |
5 |
9.6 |
21.16 |
51.10010 |
|
DRS 183 |
18,300 |
13,497 |
243 |
9.57 |
193 |
7.60 |
88 |
3.46 |
50 |
1.97 |
141 |
5.55 |
11.7 |
25.79 |
51.10012 |
|
DRS 275 |
27,500 |
20,283 |
276 |
10.87 |
221 |
8.70 |
85 |
3.35 |
55 |
2.17 |
159 |
6.26 |
16.4 |
36.16 |
51.10014 |
|
DRS 363 |
36,300 |
26,774 |
319 |
12.56 |
151 |
5.94 |
90 |
3.54 |
60 |
2.36 |
175 |
6.89 |
22.3 |
49.16 |
51.10015 |
|
DRS 440 |
44,000 |
32,453 |
313 |
12.32 |
248 |
9.76 |
104 |
4.09 |
65 |
2.56 |
184 |
7.24 |
28.8 |
63.49 |
51.10016 |
|
DRS 660 |
66,000 |
48,679 |
459 |
18.07 |
384 |
15.12 |
122 |
4.80 |
75 |
2.95 |
232 |
9.13 |
41.3 |
91.05 |
51.10018 |
|
DRS 800 |
80,000 |
59,005 |
495 |
19.49 |
415 |
16.34 |
124 |
4.88 |
82 |
3.23 |
250 |
9.84 |
65 |
143.3 |
51.10020 |
