| Mã hàng | DKS- |
| Danh mục | NHÓM DỤNG CỤ THỦY LỰC LOẠI XOAY (TORQUE WRENCH). |
| Thương hiệu | ITH BRAND |
| Xuất xứ | Made in Germany |
| Chia sẻ | |
| Liên hệ nhanh |
028-7300 7797
sales@nhatduysgn.com |

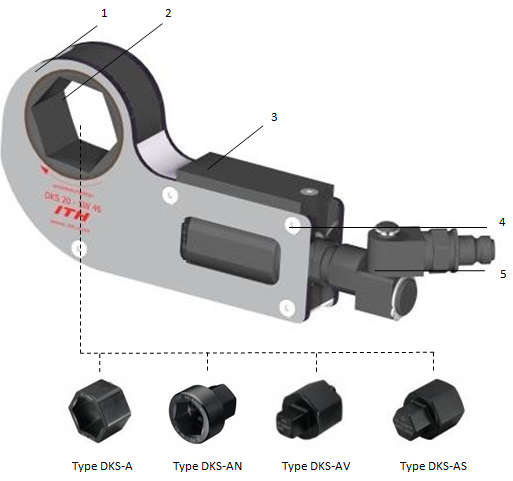

1. Compact Design Slim profile and small head radius fit easily into tight locations.
2. Hexagon output accepts for several inserts: hex-reducer type DKS-A, socket type DKS-AN, square drive type DKS-AV hex drive adapter DKS- AS.

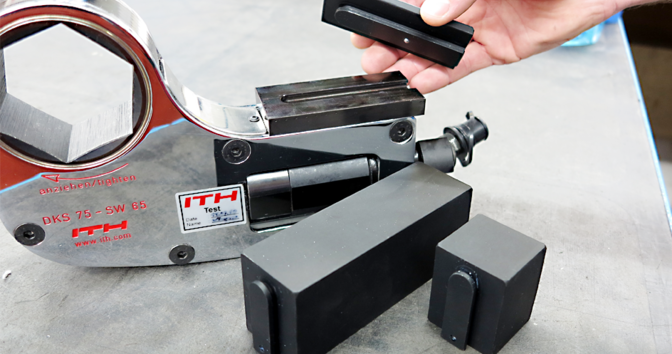

3. Extra strong support plate direct support for constant and repetitive supporting conditions. An extra or excessive bending moment is avoided. The plate is a ware part and can be exchanged easily.
4. Component design Single acting hydraulic cylinder, patented ratchet system and strong 2-component housing allows for quick and easy maintenance.

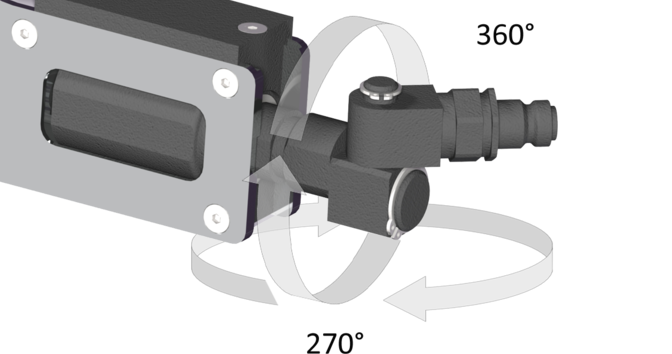

5. TWIN-Swivel-Connector with two swivel points for maximum flexibility when positioning the tool and hose.
Technical data:
|
ITH type |
Max. Torque |
B |
L1 |
L2 |
R |
H |
A/F |
Weight |
ITH order no. |
||||||||
|
[Nm] |
[ft·lb] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[mm] |
[´´] |
[kg] |
[lb] |
|
|
|
DKS 12 |
1,250 |
922 |
31.5 |
1.24 |
142 |
5.59 |
110 |
4.33 |
24 |
0.94 |
61,5 |
2.42 |
30 |
1.18 |
1.3 |
2.87 |
52.10001 |
|
|
147 |
5.79 |
28 |
1.10 |
61,5 |
2.42 |
36 |
1.42 |
1.4 |
3.09 |
52.10002 |
||||||
|
DKS 20 |
2,000 |
1,475 |
34 |
1.34 |
183 |
7.20 |
145 |
5.71 |
28 |
1.10 |
73 |
2.87 |
36 |
1.42 |
1.5 |
3.31 |
52.10003 |
|
|
188 |
7.40 |
35 |
1.38 |
76 |
2.99 |
46 |
1.81 |
1.8 |
3.97 |
52.10004 |
||||||
|
DKS 45 |
4,500 |
3,319 |
44 |
1.73 |
204 |
8.03 |
143 |
5.63 |
38 |
1.50 |
99 |
3.90 |
46 |
1.81 |
3.4 |
7.50 |
52.10008 |
|
|
206 |
8.11 |
160 |
6.30 |
42 |
1.65 |
99 |
3.90 |
55 |
2.17 |
3.6 |
7.94 |
52.10010 |
||||
|
|
214 |
8.43 |
262 |
10.31 |
48 |
1.89 |
137 |
5.39 |
65 |
2.56 |
3.8 |
8.38 |
52.10011 |
||||
|
|
270 |
10.63 |
214 |
8.43 |
56 |
2.20 |
137 |
5.39 |
75 |
2.95 |
4.1 |
9.04 |
52.10012 |
||||
|
|
280 |
11.02 |
210 |
8.27 |
70 |
2.76 |
137 |
5.39 |
95 |
3.74 |
4.3 |
9.48 |
52.10014 |
||||
|
DKS 75 |
7,500 |
5,532 |
46 |
1.81 |
243 |
9.57 |
185 |
7.28 |
48 |
1.89 |
124 |
4.88 |
65 |
2.56 |
5.2 |
11.46 |
52.10020 |
|
|
260 |
10.24 |
195 |
7.68 |
56 |
2.20 |
124 |
4.88 |
75 |
2.95 |
5.5 |
12.13 |
52.10021 |
||||
|
|
267 |
10.51 |
195 |
7.68 |
62 |
2.44 |
124 |
4.88 |
85 |
3.35 |
5.9 |
13.01 |
52.10022 |
||||
|
DKS 125 |
12,500 |
9,220 |
56 |
2.20 |
254 |
10.00 |
192 |
7.56 |
56 |
2.20 |
138 |
5.43 |
75 |
2.95 |
7.3 |
16.09 |
52.10031 |
|
|
279 |
10.98 |
204 |
8.03 |
70 |
2.76 |
138 |
5.43 |
95 |
3.74 |
7.7 |
16.98 |
52.10032 |
||||
|
DKS 165 |
16,500 |
12,170 |
62 |
2.44 |
294 |
11.57 |
210 |
8.27 |
70 |
2.76 |
155 |
6.10 |
95 |
3.74 |
11.2 |
24.69 |
52.10040 |
|
303 |
11.93 |
210 |
8.27 |
78 |
3.07 |
155 |
6.10 |
105 |
4.13 |
12.0 |
26.46 |
52.10041 |
|||||
|
350 |
13.78 |
240 |
9.45 |
86 |
3.39 |
171 |
6.73 |
115 |
4.53 |
13.5 |
29.76 |
52.10042 |
|||||
|
66 |
2.60 |
347 |
13.66 |
235 |
9.25 |
100 |
3.94 |
171 |
6.73 |
135 |
5.31 |
14.5 |
31.97 |
52.10043 |
|||
|
DKS 250 |
25,000 |
18,439 |
76 |
2.99 |
326 |
12.83 |
230 |
9.06 |
70 |
2.76 |
175 |
6.89 |
95 |
3.74 |
13.3 |
29.32 |
52.10050 |
|
|
|
|
321 |
12.64 |
238 |
9.37 |
78 |
3.07 |
170 |
6.69 |
105 |
4.13 |
15.2 |
33.51 |
52.10051 |
||
|
|
|
|
352 |
13.86 |
238 |
9.37 |
88 |
3.46 |
173 |
6.81 |
115 |
4.53 |
16.8 |
37.04 |
52.10052 |
||
|
DKS 330 |
33,000 |
24,340 |
78 |
3.07 |
386 |
15.20 |
273 |
10.75 |
88 |
3.46 |
183 |
7.20 |
115 |
4.53 |
19.5 |
42.99 |
52.10060 |
|
|
|
|
401 |
15.79 |
281 |
11.06 |
100 |
3.94 |
186 |
7.32 |
135 |
5.31 |
21.5 |
47.40 |
52.10061 |
||
|
DKS 400 |
40,000 |
29,502 |
94 |
3.70 |
429 |
16.89 |
294 |
11.57 |
100 |
3.94 |
223 |
8.78 |
135 |
5.31 |
22.0 |
48.50 |
52.10070 |
|
|
|
|
94 |
3.70 |
435 |
17.13 |
295 |
11.61 |
112 |
4.41 |
223 |
8.78 |
145 |
5.71 |
25.0 |
55.12 |
52.10071 |
|
DKS 600 |
60,000 |
44,254 |
96 |
3.78 |
481 |
18.94 |
356 |
14.02 |
112 |
4.41 |
265 |
10.43 |
145 |
5.71 |
35.0 |
77.16 |
52.10080 |
|
|
|
|
106 |
4.17 |
558 |
21.97 |
374 |
14.72 |
120 |
4.72 |
278 |
10.94 |
165 |
6.50 |
37.0 |
81.57 |
52.10081 |
|
DKS 700* |
70,000 |
51,629 |
130 |
5.12 |
508 |
20.00 |
365 |
14.37 |
130 |
5.12 |
272 |
10.71 |
180 |
7.09 |
62.0 |
136.69 |
52.10090 |
|
DKS 900* |
90,000 |
66,381 |
135 |
5.31 |
552 |
21.73 |
382 |
15.04 |
150 |
5.91 |
299 |
11.77 |
210 |
8.27 |
80.0 |
176.37 |
52.10110 |
|
DKS 1300* |
130,000 |
95,883 |
150 |
5.91 |
599 |
23.58 |
431 |
16.97 |
168 |
6.61 |
339 |
13.35 |
210 |
8.27 |
95.0 |
209.44 |
52.10150 |

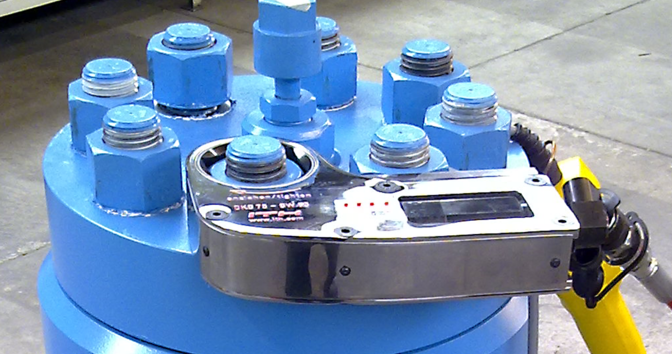

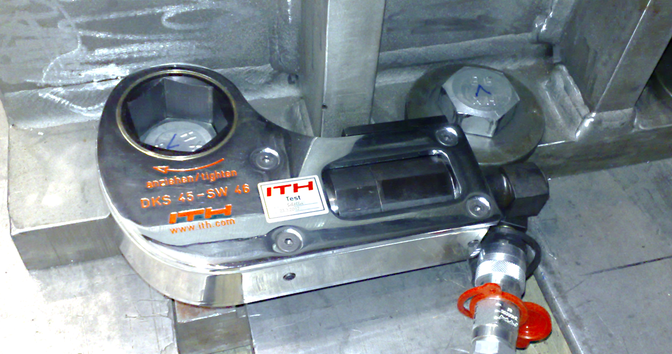

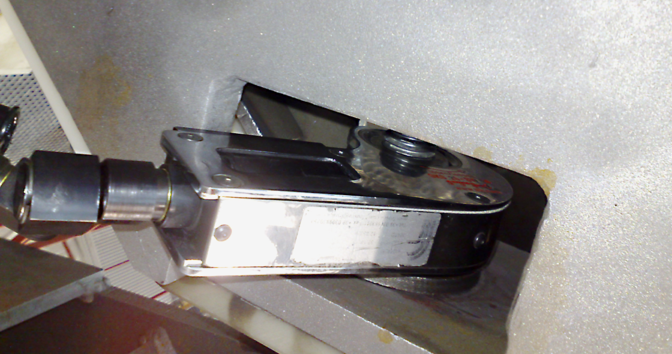

Application:
