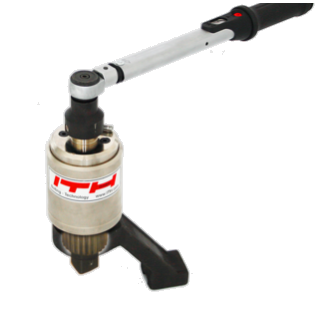

Bộ Nhân Lực MDS

Mã hàng MDS-
Danh mục BỘ NHÂN LỰC (TORQUE WRENCH MULTIPLIER).
Thương hiệu ITH BRAND
Nhà cung cấp ITH BOLTING TECHNOLOGY
Xuất xứ Made in Germany
File đính kèm ith-nut-runners-brochure-en-2017-web-last-version-4.pdf
Chia sẻ
Liên hệ nhanh 028-7300 7797
sales@nhatduysgn.com

Features:

1. ½” square-drive

2. Return lock, switch able for tightening and loosening

3. Overload safety device by shear pin

4. Planetary gear

5. Fine-tooth reaction arm. Optional: TWIN-Reaction arm, rotating  foot, individual version

6. Square drive 1“ or 1 ½“ for replacement nut with square socket and safety clamp



Technical data:

 ITH type

ITH order no.

Max. Torque



Ratio

Output A

Input a

Diameter D ø

Length L

Weight*

[Nm]

[ft•lb]

[‘‘]

[‘‘]

[mm]

[‘‘]

[mm]

[‘‘]

[kg]

[lb]

MDS- 150

30.10150

1,500

1,100

1:4

1

1/2

85

3.34

190

7.48

3.4

7.5

MDS- 320

30.10320

3,200

2,360

1:18

1

1/2

88

3.36

230

9.05

5.2

11.5

MDS- 420

30.10420

4,200

3,100

1:16

1 1/2

1/2

88

3.36

244

9.05

5.9

13.0

MDS- 600

30.10600

6,000

4,425

1:18

1 1/2

1/2

102

4.02

257

4.02

7.0

15.4

MDS-800**

30.10800

8,000

5,900

1:22

1 1/2

1/2

130

5.11

279

5.11

10.5

23.1

MDS-1000**

30.11000

10,000

7,375

1:62

1 1/2

1/2

130

5.11

315

5.11

15.7

34.6

*Without support, sockets and manual torque wrench

**MDS-800 andMDS-1000 have a double return locking mechanism
