DỤNG CỤ THỦY LỰC DÙNG THÁO/LẮP BU-LÔNG & ĐAI ỐC CỦA MÂM XOAY CẨU LIEBHERR (LIEBHERR CRANES)

Mã hàng 33.xxxxx
Danh mục NHÓM BU LÔNG, ĐAI ỐC DÙNG CHO MÂM XOAY CẨU
Thương hiệu ITH BRAND
Nhà cung cấp ITH BOLTING TECHNOLOGY
Xuất xứ Made in Germany
File đính kèm ith-bolt-tensioning-cylinders-btc-2014-en-web.pdf
Chia sẻ
Liên hệ nhanh 028-7300 7797
sales@nhatduysgn.com

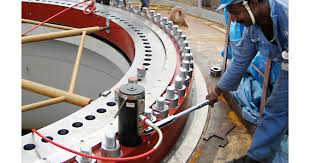

BỘ DỤNG CỤ THỦY LỰC DÙNG ĐỂ THÁO/LẮP BU-LÔNG MÂM XOAY CẨU LIEBHERR (LIEBHERR CRANES). Bao gồm:



I./ XY LANH THỦY LỰC (BOLT TENSIONING CYLINDERS)

Subassembly cylinder M36 Special equipment: hydraulic-mechanical cycle counter, mechanical stroke limitation, automatic piston return, measurement hole, safety cover

Maximum hydraulic operating pressure:  1800 bar
Tension: 666 kN
Outer diameter: 92,5 mm
Height: 157,5 mm
Stroke: 10 mm
Weight: 6,5 kg
Change bushing (size): M36x4 (Connection part for bolt)

Subassembly support Liebherr RMZ nut Special equipment: spring loaded turning sleeve, direct gear drive for adjusting the nut with ½” inner square, control notch.

Outer diameter:  89 mm
Height: 76,2 mm
Weight: 1,4 kg
Turning sleeve (accross flat): AF 55 mm (Connection part for adjusting the nut)





II./ BƠM THỦY LỰC ITH (ITH HYDRAULIC PUMP).

 Pneumatic high pressure pump unit type AeroMax 0925 suitable for the connection of one or several hydraulic bolt-tensioning cylincers or other tools, completely assembled, filled with oil and pressure tested, ready for immediate use.

Consisting of:

- Pneumatic-hydraulic pressure booster with pneumatic reversing valve.

- Pneumatic service unit with shut-off valve, water separator and oiler.

- Stepless pressure adjusting at the hydraulic pressure adjusting valve.

- Pump head with return valve.

- Two high pressure couplings.

- High pressure gauge, class 1.0, Ø100, filled with glycerint.

- Aluminium oil tank with oil-level indicator.

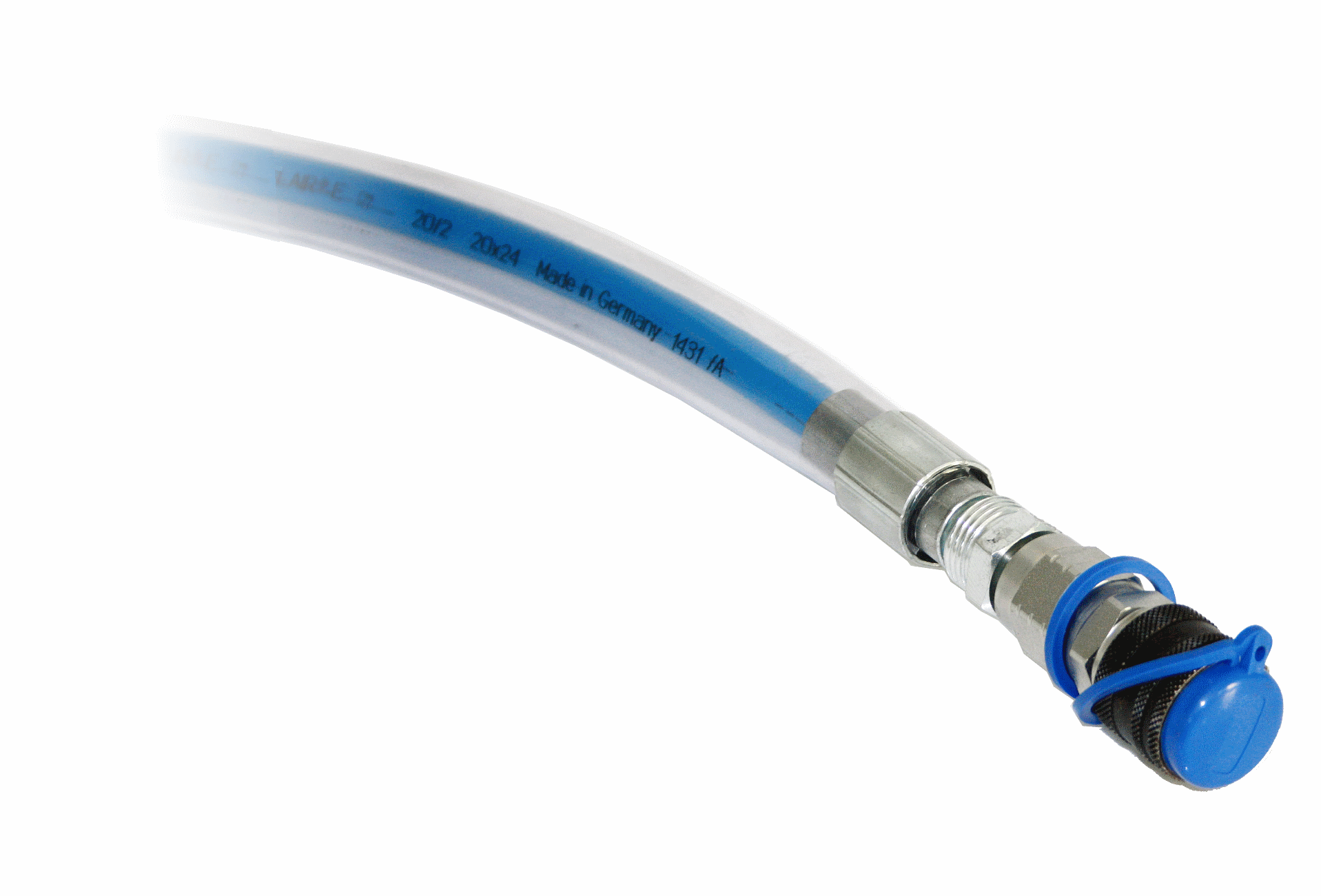

 III./ ỐNG THỦY LỰC (ITH HYDRAULIC HOSE)

 High pressure hose line, cover protection and safety spring.

 IV./ PHỤ KIỆN KÈM THEO NHƯ KHỚP NỐI THỦY LỰC (FULL ACESSORIES).
